Exporting overlapping annotations in multiple tiers as data in table form

Question seeking ideas/feedback/suggestions for dealing with multimodal data

I have some annotations in multiple tiers that I would like to export in some form that can be used for statistical analysis.

In addition to the usual transcription and translation tiers, I have three tiers, speech_vp, body_vp, and hands_vp. Annotations in each of those tiers has a numerical value that is an ID for a particular character in a narrative.

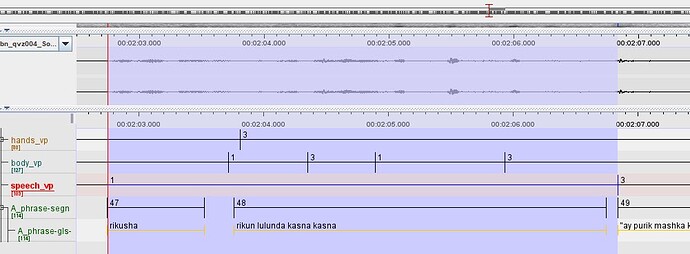

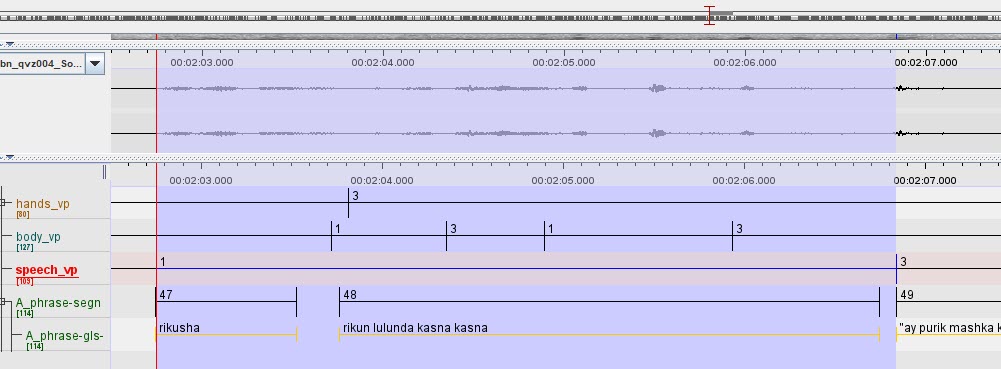

What I want to find out, is how and when the ID tags line up/don’t line up across the tiers. Here’s a screenshot:

So let’s say I want to use the speech_vp tier as my anchor point. Within the highlighted portion, in which a single annotation in the speech_vp tier is selected. In the other tiers, I can see that the character ID values change several times in the body_vp tier, and once in the hands_vp tier.

I need some way to capture this data ‘in the aggregate’ so I can make some attempts to try and quantify these co-occurrences.

I’ve been experimenting with various export options, including CSV files, but haven’t yet produced anything immediately useful.

So I’m just here fishing for any suggestions anyone might have. I realize that the way the data should be organized depends on the kinds of questions I want to investigate, but at the moment I’m exploring what kind of export output gives me data that is easy to work with in a spreadsheet or R.

Hello,

Hopefully another user with similar research questions will post useful suggestions here.
Until then, I wonder if you also tried the File->Export Multiple Files As->Annotation Overlaps Information export option? It allows to specify a reference tier (your anchor point) and export information from one or more other tiers (e.g. per annotation is there an overlapping annotation, how many, concatenated values of overlapping annotations etc. see the manual) as tab-delimited text or csv.
And maybe the third party resources page lists tools that could be useful to try (e.g. the Aligned Corpus Toolkit written in R)?

-Han
